SuperMINI Aquatics System

Name: SuperMINI Aquatics System
Brand: Tecniplast Shopify
SKU: ZB090612ERMN4
Price: 14748.75 USD
Availability: InStock

$14,748.75

Sale Contact Us

Product Information Product code : ZB090612ERMN4

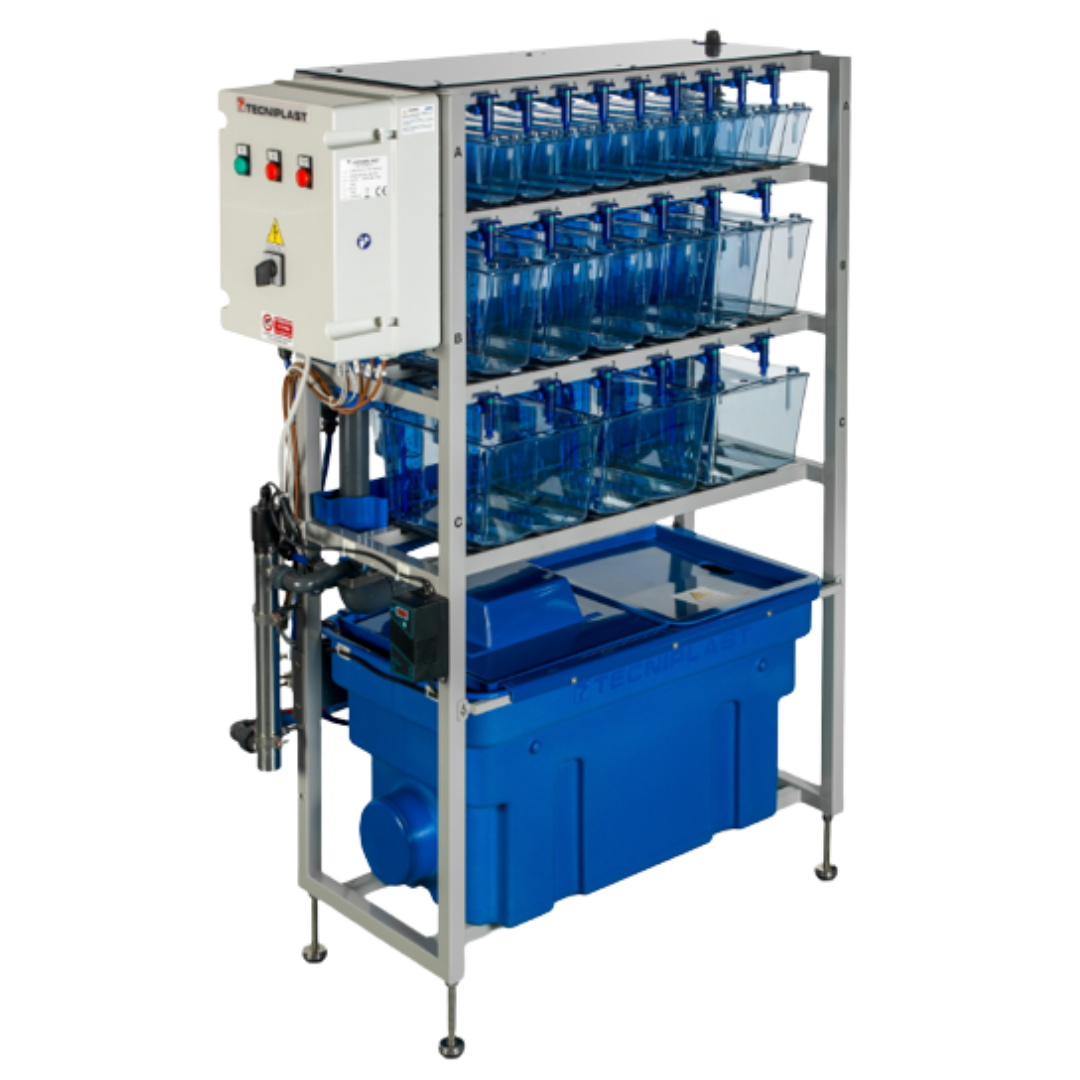

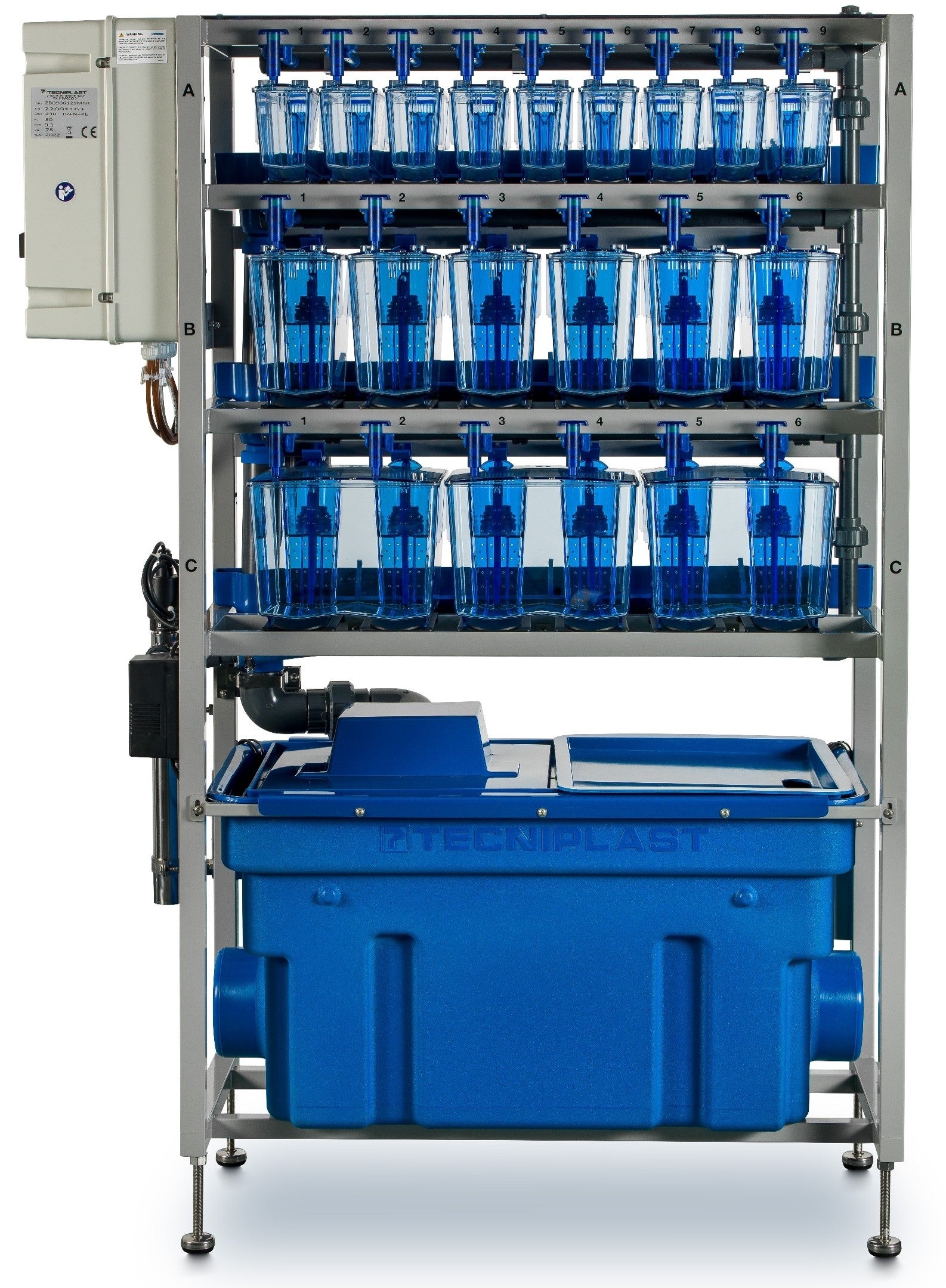

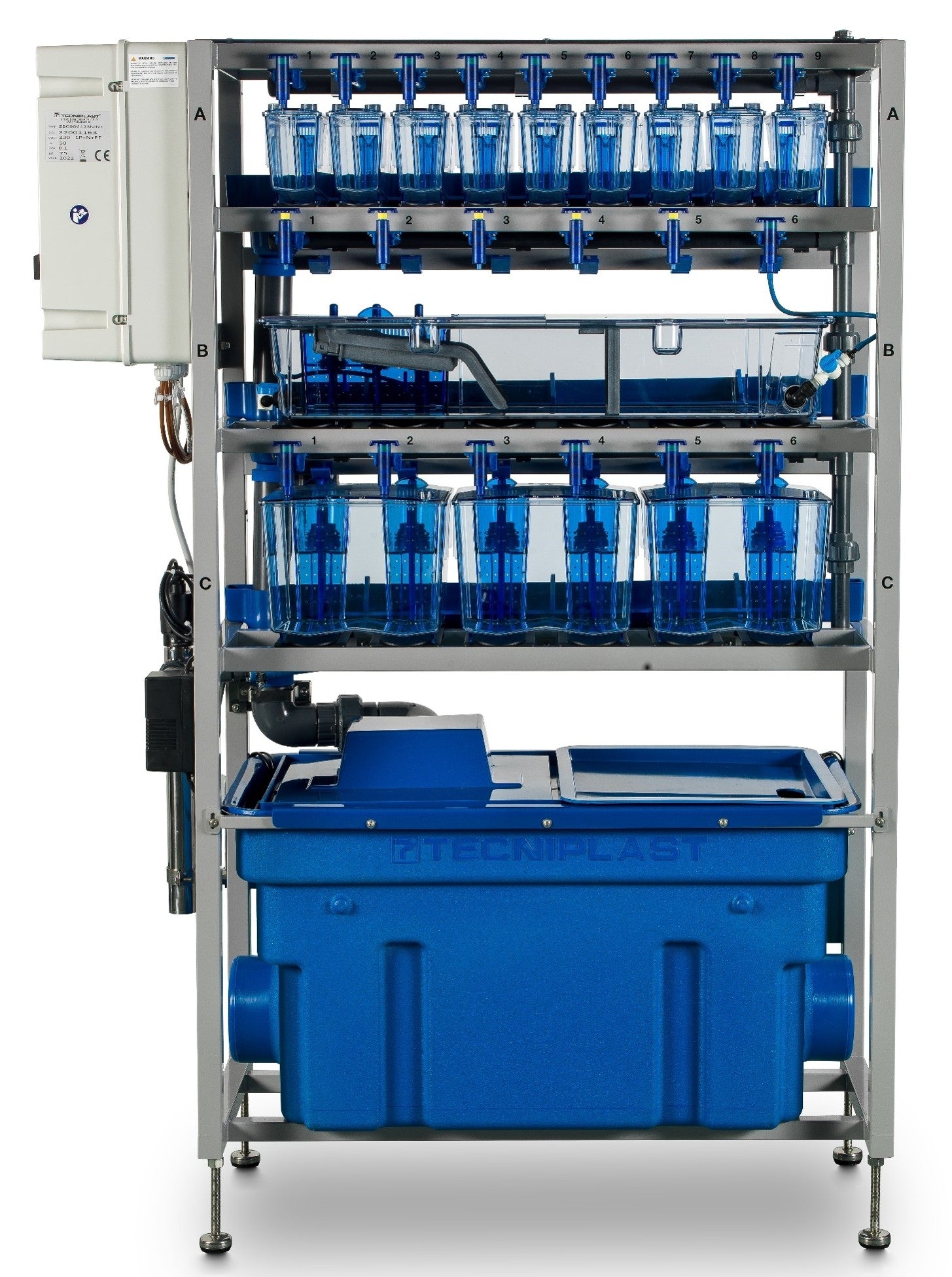

The Standalone Aquatics System for Small Labs - Designed for smaller labs, quarantine applications, and decentralized research environments, the SuperMINI delivers dependable performance in a compact, standalone format. It combines robust filtration, precise environmental control, and flexible tank configurations to support a wide range of aquatic research needs.

Compatible with 1.1 L, 2.4 L, 3.5 L, and 8.0 L tanks, plus Z-Park systems on dedicated rows
Powder-coated 316L stainless steel rack with adjustable rubberized feet
Integrated tank identification system for streamlined management
High-performance mechanical and biological filtration for stable water quality
Fully equipped technical sump with:
- Submerged recirculating pump
- Heating element
- Water level sensors
Designed for easy maintenance and long-term reliability

Product variants

Quantity

Request Bulk Pricing

What is included in the Standard System?

The SuperMINI Aquatics System is delivered as a complete, ready-to-operate standalone solution, including the rack structure, technical sump tank, pre-filter system, UV disinfection unit, heating element, submerged circulation pump, water level sensors, and solenoid valve. In addition, the system includes a startup kit with essential consumables and housing components, such as 1.1 L, 3.5 L, and 8.0 L tanks, along with baffles and critical spare parts to support immediate installation, operation, and ongoing maintenance. This comprehensive package ensures users have everything needed to begin housing aquatic species and maintaining system performance from day one.

Download

Specification Table

Aquatics Brochure

SuperMINI Drawing

Category	Specification
System Type	Standalone recirculating aquatics system
Rack Structure	Powder-coated AISI 316L stainless steel
Frame Features	Adjustable rubberized feet with alphanumeric tank identification
Total Water Volume	54.9 liters
Maximum Fish Density	Up to 579 adult fish (10 fish/L)
Tank Compatibility	1.1L 2.4L 3.5L 8.0L tanks and Z-Park systems
Tank Configuration	Two rows for 3.5L or 8.0L tanks or Z-Park and top row for 1.1L or 2.4L tanks
Water Circulation	Submerged pump very low noise operation
Mechanical Filtration	Pad-based filtration
Biological Filtration	Integrated biological filtration
UV Disinfection	Greater than 50000 µW/cm²/sec
Water Exchange	Automatic approximately 10 percent per day
Water Level Control	Automatic
Temperature Control	Integrated heating elements
Monitoring	Temperature monitoring
Installation	By Tecniplast or Self-install standalone system
Warranty	24 months

Tecniplast vs. Other Manufacturers

Tecniplast

Brand X

Brand Y

Painted Stainless Steel Rack

Stainless Steel UV Lamp

UV Lamp Power > 50.000 µW/cm2/sec

Automatic Water Exchange

Temperature Control

Tank Flexibility

Automatic Level Control

Heating Included

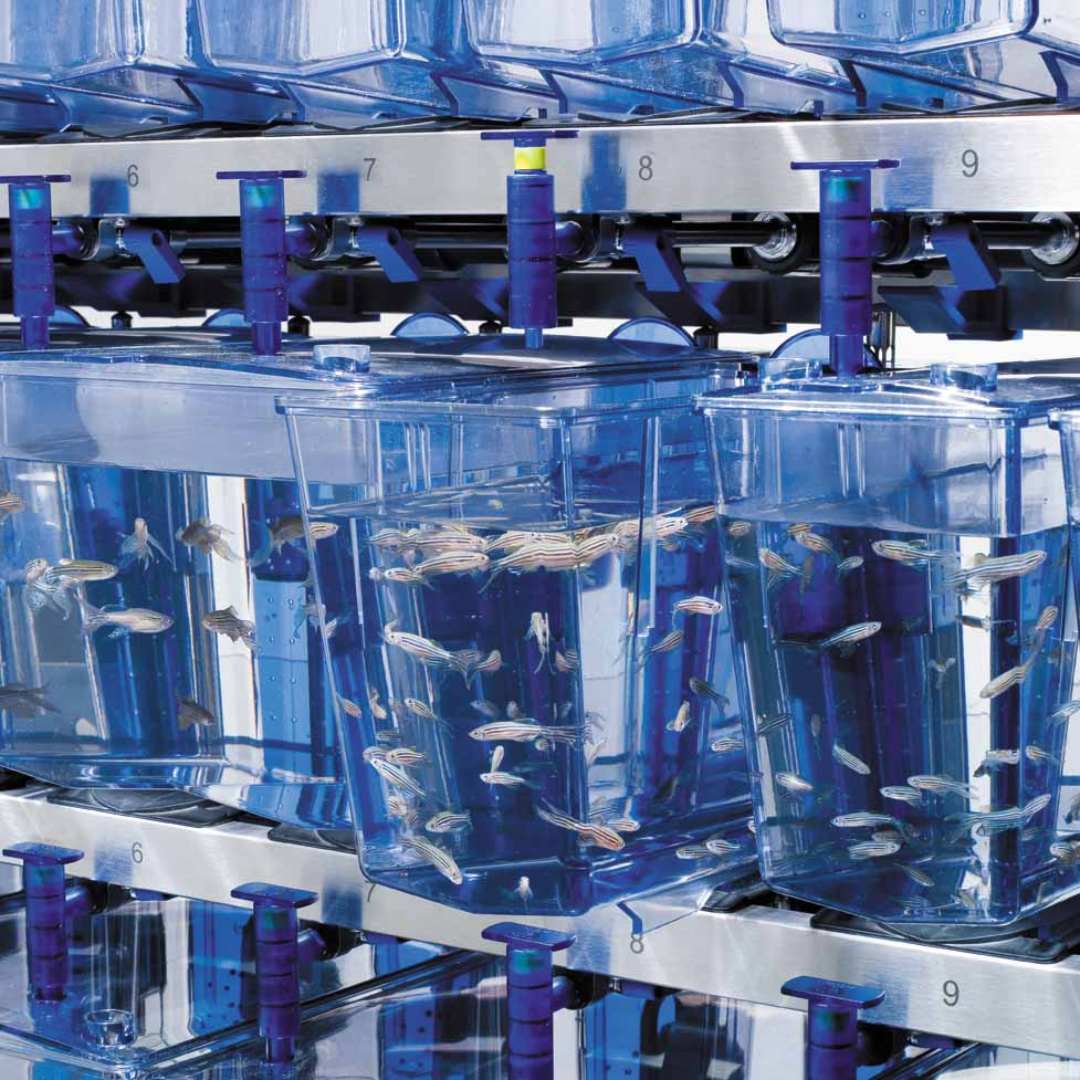

What Makes These Tanks So Different?

Patented Design

The tanks are specifically designed for research aquatic species. They feature a bottom siphoning drain to remove debris. A safety mechanism to ensure tanks maintain the correct level. A sloped base so that the debris moves towards the siphon. A color that inhibits algae growth. And an adjustable flow valve with on/off indicator. Many Industry Firsts!

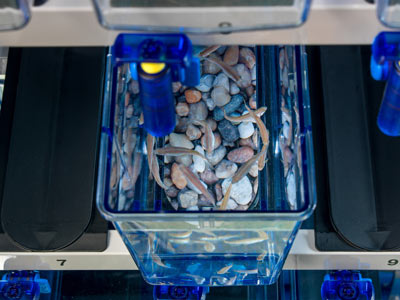

Enrichment, for Zebrafish?

Yes, studies have shown that enrichment in aquatic environments decreases animal cortisol levels. Tecniplast has enrichment that mimics the natural environment that can be inserted into the Aquatics Racks. Innovation and the 3R's are paramount to Biomedical Research.

Frequently Asked Questions

Have questions? We’re here to help

What are the installation requirements?

The system requires:

Electrical power supply with proper grounding
Reverse osmosis water connection
Dedicated drain connection
Adequate room ventilation and temperature control

What is the SuperMINI Aquatics System used for?

The SuperMINI is a compact recirculating aquatics system designed to house zebrafish and other small aquatic species under stable, controlled environmental conditions. It is ideal for small labs, quarantine rooms, and pilot studies.

How does the system maintain water quality?

Water is continuously recirculated through mechanical and biological filtration, heated in the sump, and passed through a UV disinfection unit before returning to the tanks. A portion of the water is automatically replaced daily with fresh water.

Does the system automatically control water parameters like pH and conductivity?

No this system does not. The system maintains stable physical conditions (temperature, flow, filtration), but monitoring and adjustment of parameters such as pH and conductivity are the responsibility of the user. The Stand Alone Active Blue Racks do Control These Parameters.

What type of water supply is required?

The system requires a reverse osmosis (RO) water supply for proper operation and to maintain water quality standards.

How often does the system change water?

The system performs automatic daily water exchange, typically around 10% of the total volume, helping maintain stable and consistent conditions.

How quiet is the system?

The SuperMINI is designed for low-noise operation, with sound levels typically below 65 dB, making it suitable for laboratory environments.
